2 - 30 Pin Female Connector B Series Solder Type 00 / 0B / 1B 2B Available

Product Categories
Shenzhen MOCO Interconnect Co., Ltd.
Contact Now

2 - 30 Pin Female Connector B Series Solder Type 00 / 0B / 1B 2B Available

  • 1
  • 2
  • 3

Brand Name : MOCO

Model Number : EGG.1B.302

Certification : UL CE ROHS ISO9001

Place of Origin : Guangdong, China

MOQ : 10 pcs

Price : USD: 5 - 10 ( Unit Type: pcs )

Payment Terms : T/T, Paypal, Western Union, Alibaba trade insurance

Supply Ability : 200000 pcs /month

Delivery Time : 4 - 7 working days after receiving payment

Packaging Details : Each connector in a PE bag. every 50 or 100 pcs of connectors in a small box (size:20cm*15cm*6cm), every 6 small boxes in a carton(size:30cm*20cm*20cm)

Sample : Available

Factory : yes

Connector type : Solder

Size : 00 / 0B /1B 2B available

Pin : 2 to 30 pin availale

Housing material : Chrome plated brass

Type : Push pull connector

Contact Now

MOCO black metal Connector B series 2 to 30 pin EGG female connector

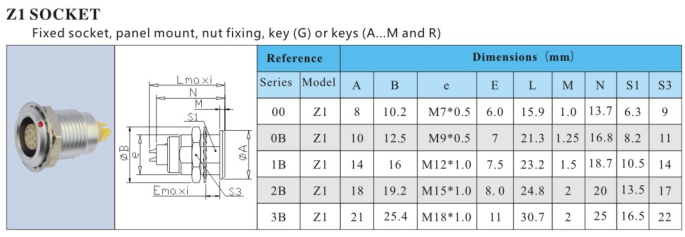

Z1 (EGG) female socket:

1. Z1 is a fixed socket, panel mount, nut fixing,key(G) or keys (A...M and R).

2. 00B: 2,3,4 pin available;

3.0,3.5 mm cable collet diameter available

3. 0B: 2,3,4,5,6,7,9 pin available;

3.5mm ,4.0mm ,5.0mm cable collet diameter available

4. 1B: 2,3,4,5,6,7,8,10,12,14,16 pin available;

3.0mm ,4.0mm ,5.0mm ,6.0mm ,7.0mm cable collet diameter available

5. 2B: 1(250),2,3,4,5,6,7,8,10,12,14,16,18,19,26 pin available

4.0mm ,5.0mm ,6.0mm ,7.0mm ,8.0mm ,9.0mm ,10.0mm cable collet diameter available

6. 3B:1,3,4,7,8,10,12,14,16,18,20,26,30 pin available

7. We have " black chrome plated brass" and " chrome plated brass" for connector.

MOCO P / N

1BZ1G02(EGG.1B.302)
Insert Configuration: 2 pin low voltage
Size: 1B
Insulator: PPS
R (max): 5 mohm
Max. Matings: 5000
Contact Dia: 1.3mm
Rated Current: 15A (AC/DC)
Temp (min) -40 deg
Temp (max) 200 deg C
Humidity (max) <=95% [at 60 deg C / 140 F]
Salt Spray Corrosion >144 hr
IP Rating 50

2 - 30 Pin Female Connector B Series Solder Type 00 / 0B / 1B 2B Available

We also provide cable assembly service!

If you have any interests, please feel free to contact us!

Contact us today, we are looking forward to serving you!
